LoD1 Timing and Quality Considerations

LoD1 Timing and Quality Considerations#

This notebook will:

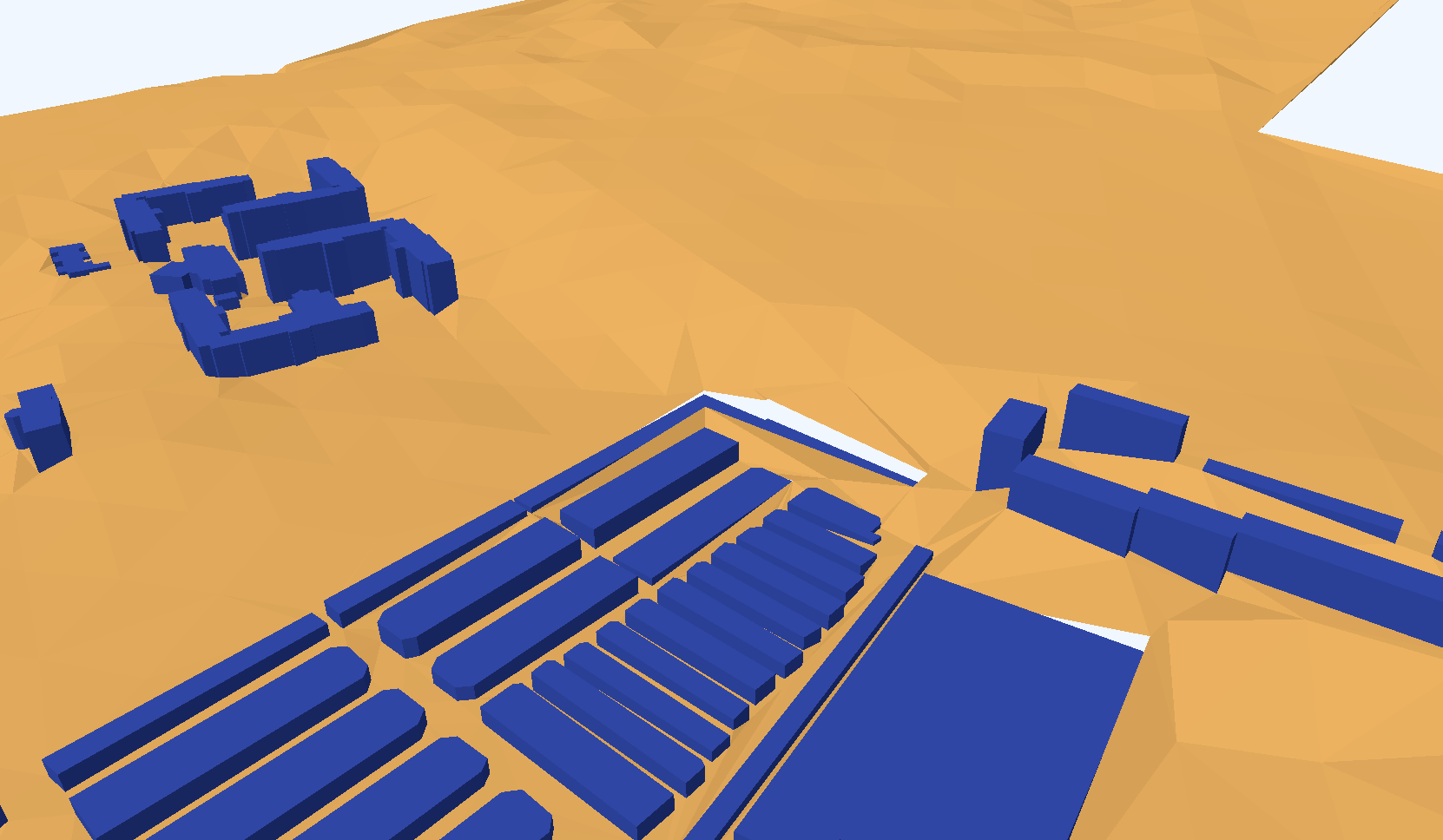

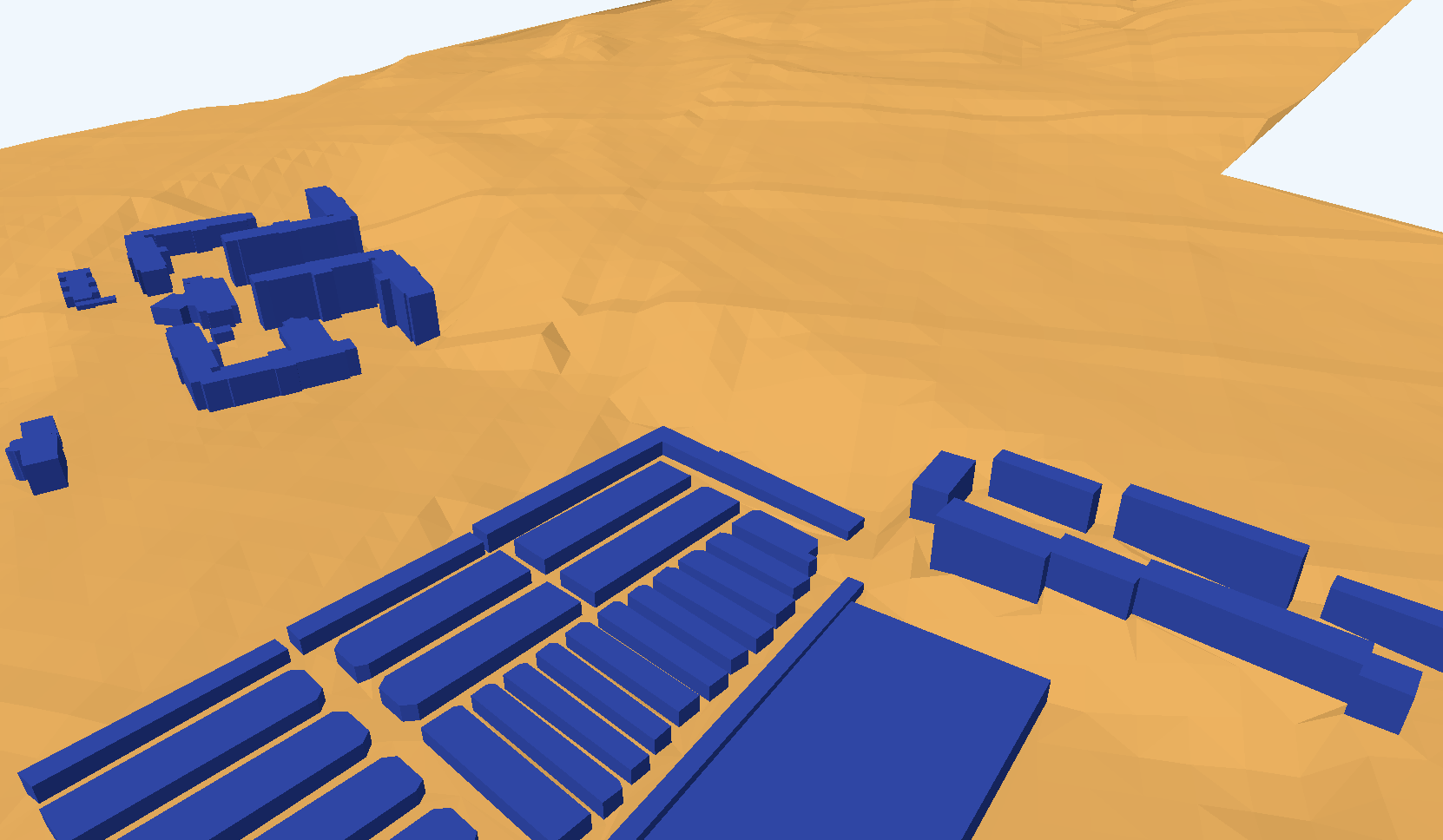

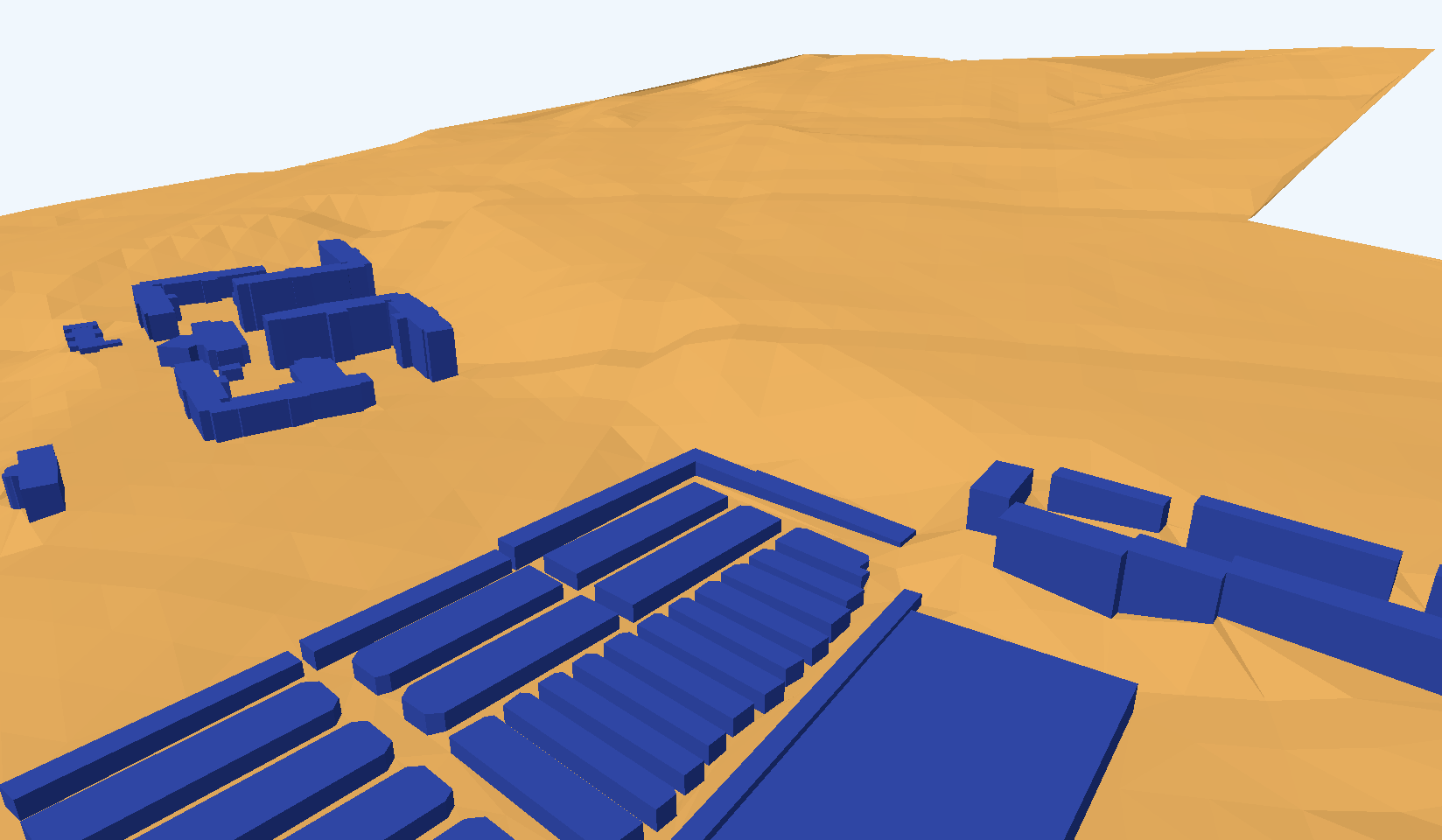

illustrate how different resolution elevation models (25m, 15m and 10m DEM) affect;

1) the quality (holes and completeness) of a LoD1 3D City Model

#- load the magic
import time
from datetime import timedelta
import tempfile

import os
from itertools import chain
import math
import requests
import overpass
import copy
import json
import numpy as np
import pandas as pd
import topojson as tp

import shapely
from shapely.geometry import Point, Polygon, polygon
from shapely.ops import snap, transform
from shapely.strtree import STRtree

import city3D

import pyproj
from osgeo import gdal, ogr, osr

import triangle as tr

from openlocationcode import openlocationcode as olc

import matplotlib.pyplot as plt

Tstart = time.time()
import warnings
warnings.filterwarnings('ignore')

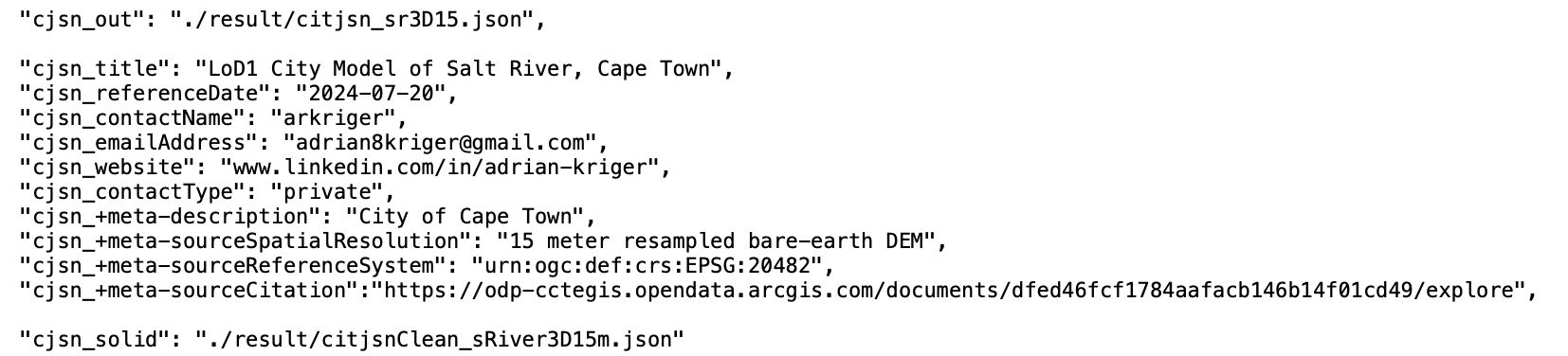

A parameter.json defines the path and files.

#jparams = json.load(open('sRiver_param10m.json'))  # was 11 min 30 sec | [2024] 0:05:12.30 | now 0:00:13.49
jparams = json.load(open('sRiver_param15m.json'))  # was 5 min 20 sec | [2024] 0:02:24.49 | now 0:00:11.67
#jparams = json.load(open('sRiver_param25m.json'))  # was 2 min 13 sec | [2024] 0:01:00.15 | now 0:00:10.57

area of interest	elevation model	CityJSON and metadata

#- input OSM PBF file
input_pbf = "./data/CapeTown.osm.pbf"

Lets first harvest the boundary of the area; we want to interogate

#- get the area [suburb]
query = """[out:json][timeout:360];
        area[boundary=administrative][name='{0}'] -> .a;
        (
        way[amenity~'university|research_institute'][name='{1}'](area.a);
        relation[place][place~"sub|town|city|count|state|village|borough|quarter|neighbourhood"][name='{1}'](area.a);
        );
        out geom;
        """.format(jparams['LargeArea'], jparams['FocusArea'])

#- execute function from city3D and and return GeoDataFrameLite | home-baked gdf
aoi = city3D.overpass_to_gdf(query)

#- suppose 'aoi' is your GeoDataFrameLite or list of geometries
geoms = aoi['geometry'].tolist()
#- combine all geometries into a single union
combined_geom = shapely.unary_union(geoms)  # returns Polygon or MultiPolygon
#- compute bounding box
minx, miny, maxx, maxy = combined_geom.bounds
#extent = [minx - 250, miny - 250,maxx + 250, maxy + 250]
aoi.head(2)

	boundary	name	place	type	wikidata	geometry	osm_id	osm_type
0	place	Salt River	suburb	boundary	Q2383969	POLYGON ((18.4575251 -33.9411991, 18.4591488 -...	2034284	relation

Only harvest what we need from the osm.pbf.

start = time.time()

gdal.UseExceptions()
gdal.SetConfigOption("OGR_GEOMETRY_ACCEPT_UNCLOSED_RING", "NO")
#gdal.SetConfigOption("USE_CUSTOM_INDEXING", "NO")
# Input OSM PBF file
#input_pbf = "your_data.osm.pbf"

# GDAL Virtual File System (VSI) to avoid writing to disk
geojson_vsimem = "/vsimem/temp.geojson"

#- GDAL VectorTranslate to extract only buildings & fix geometries
gdal.VectorTranslate(
    geojson_vsimem,                                           # Output as in-memory GeoJSON
    input_pbf,                                                # Source OSM PBF file
    format="GeoJSON",                                         # Output format
    layers=["multipolygons"],                                 # Extract only multipolygons
    options=["-where", "building IS NOT NULL", "-makevalid",
                          "-spat", str(minx), str(miny), str(maxx), str(maxy)]  # Filter buildings & fix geometries
)

#- load into GeoDataFrameLite | home-baked gdf
gdf = city3D.read_vsimem_geojson(geojson_vsimem)

#- cleanup VSI Memory
gdal.Unlink(geojson_vsimem)

end = time.time()
print('runtime:', str(timedelta(seconds=(end - start))))

ERROR 1: Non closed ring detected.
ERROR 1: Non closed ring detected.

runtime: 0:00:02.442396

gdf.head(2)

	amenity	building	craft	geometry	historic	leisure	man_made	name	office	osm_id	osm_way_id	other_tags	shop	sport	tourism	type
0	None	office	None	MULTIPOLYGON (((18.4723433 -33.9288948, 18.472...	None	None	None	Western Cape Metrorail - Infrastructure Building	None	6383946	None	"addr:city"=>"Cape Town","addr:postcode"=>"729...	None	None	None	multipolygon
1	None	hall	None	MULTIPOLYGON (((18.4686004 -33.9360187, 18.468...	None	None	None	None	None	6691666	None	"addr:housename"=>"Parish Hall"	None	None	None	multipolygon

# Convert valid strings, ignore None/NaN
def safe_convert(tag_string):
    if isinstance(tag_string, str):
        try:
            # Replace "=>" with ":" and fix newlines
            formatted_string = "{" + tag_string.replace("=>", ":").replace("\n", " ") + "}"
            return json.loads(formatted_string)  # Parse safely
        except json.JSONDecodeError:
            return {}  # Return empty dict on failure
    return {}  # Return empty dict if NaN or None

# Apply conversion function
gdf["tags"] = gdf["other_tags"].apply(safe_convert)

# Normalize the 'tags' column to create a new DataFrame
tags_df = pd.json_normalize(gdf['tags'])
# Join the new columns back to the original GeoDataFrame
gdf = pd.concat([gdf, tags_df], axis=1)
# (Optional) Drop the original 'tags' column
gdf = gdf.drop(columns=['other_tags'])

# Ensure a single 'osm_id' column
if 'osm_id' in gdf.columns:
    if 'osm_way_id' in gdf.columns:
        gdf['osm_id'] = [o if pd.notna(o) else w
                         for o, w in zip(gdf['osm_id'], gdf['osm_way_id'])]
        gdf = gdf.drop(columns=['osm_way_id'])
elif 'osm_way_id' in gdf.columns:
    gdf = gdf.rename(columns={'osm_way_id': 'osm_id'})

#gdf = gdf[gdf.geometry.apply(lambda x: x.within(aoi.unary_union))]
gdf = gdf[gdf.geometry.apply(lambda x: x.within(shapely.unary_union(aoi.geometry)))]
gdf.crs = "EPSG:4326"

gdf.head(2)

	amenity	building	craft	geometry	historic	leisure	man_made	name	office	osm_id	...	diet:vegan	content	industrial	addr:unit	disused	sahra:criterea	opening_date	bus	network	construction
0	None	office	None	MULTIPOLYGON (((18.4723433 -33.9288948, 18.472...	None	None	None	Western Cape Metrorail - Infrastructure Building	None	6383946	...	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN
7	None	school	None	MULTIPOLYGON (((18.4615816 -33.9317448, 18.461...	None	None	None	None	None	13328172	...	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN

2 rows × 133 columns

ts = gdf[gdf['building'].notna()]
#len(ts)
print('\n', len(ts), "buildings have been harvested from", input_pbf)

 1449 buildings have been harvested from ./data/CapeTown.osm.pbf

#ts.head(2)

# basic cleaning to harvest building=* (no building:part=*) and building=levels tags only

#- we only want buildings with =levels data
ts = (
    ts.dropna(subset=['building:levels'])
      .assign(**{'building:levels': pd.to_numeric(ts['building:levels'], errors='coerce')})
      .query("`building:levels` != 0")
)

#- without building:part
#ts = ts[ts['building:part'].isnull()]
ts = ts[ts['building:part'].isnull()] if 'building:part' in ts.columns else ts
#ts = ts.explode()
print('\n\033[1m', jparams['FocusArea'], 'has \033[0m', len(ts), 'buildings')

 Salt River has  1377 buildings

#- fill <Projected CRS: EPSG:32734> from above here epsg = EPSG:32734
epsg = 'EPSG:32734'

#project blds
ts = ts.to_crs(epsg)
#project aoi
aoi = aoi.to_crs(epsg)

Create LoD1 3D City Model

aoibuffer = aoi.copy()

def buffer01(row):
    with np.errstate(invalid='ignore'):
        return row.geometry.buffer(150, cap_style=3, join_style=2)

aoibuffer['geometry'] = aoibuffer.apply(buffer01, axis=1)

#- suppose 'aoi' is your GeoDataFrameLite or list of geometries
geoms = aoibuffer['geometry'].tolist()
#- combine all geometries into a single union
combined_geom = shapely.unary_union(geoms)  # returns Polygon or MultiPolygon
#- compute bounding box
minx, miny, maxx, maxy = combined_geom.bounds

extent = [minx - 250, miny - 250,
          maxx + 250, maxy + 250]

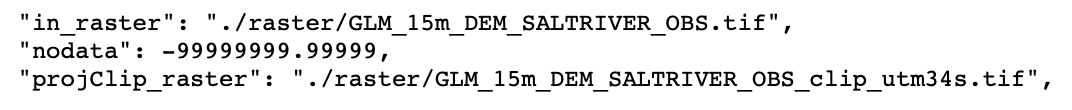

Now the DEM
one is available at raster

gdal.SetConfigOption("GTIFF_SRS_SOURCE", "GEOKEYS")
gdal.UseExceptions()

# set the path and nodata
OutTile = gdal.Warp(jparams['projClip_raster'],
                    jparams['in_raster'],
                    dstSRS=epsg,
                    srcNodata = jparams['nodata'],
                    #-  dstNodata = 0,
                    #-- outputBounds=[minX, minY, maxX, maxY]
                    outputBounds = [extent[0], extent[1], extent[2], extent[3]])
OutTile = None

#- convert raster to XYZ in-memory
#- Virtual in-memory path
xyz_mem_path = "/vsimem/temp_xyz.xyz"
gdal.Translate(xyz_mem_path, jparams['projClip_raster'], format="XYZ")

#0 read XYZ from GDAL's in-memory file
xyz_vsimem = gdal.VSIFOpenL(xyz_mem_path, "rb")
xyz_bytes = gdal.VSIFReadL(1, gdal.VSIStatL(xyz_mem_path).size, xyz_vsimem)
gdal.VSIFCloseL(xyz_vsimem)
#- cleanup in-memory file
gdal.Unlink(xyz_mem_path)

prepare to harvest elevation

# set the path to the projected, cliped elevation
src_filename = jparams['projClip_raster']

src_ds = gdal.Open(src_filename)
gt_forward = src_ds.GetGeoTransform()
rb = src_ds.GetRasterBand(1)

Buildings

#- simplify geometry with GeoDataFrameLite | home-baked gdf
ts = city3D.GeoDataFrameLite(ts)
geojson_dict = json.loads(ts.to_json())

for feat in geojson_dict["features"]:
    if feat.get("type") is None:
        feat["type"] = "multipolygon"
    if feat.get("geometry") is None:
        feat["geometry"] = {"type":"MultiPolygon","coordinates":[]}

topo = tp.Topology(geojson_dict, prequantize=False, winding_order='CCW_CW')
simplified_geojson = topo.toposimplify(0.25).to_geojson()

ts = city3D.GeoDataFrameLite.from_json(simplified_geojson)
ts.crs = epsg

#- prepare xyz (more buildings = more time)
start = time.time()

# Convert bytes to DataFrame
xyz_str = xyz_bytes.decode("utf-8")  # Decode to string

dtype_spec = {
    "x": np.float32,  # Reduce precision from float64 to float32 (saves memory)
    "y": np.float32,
    "z": np.float32
}

#df = pd.read_csv(jparams['xyz'], delimiter = ' ', header=None, names=["x", "y", "z"])
df = pd.read_csv(pd.io.common.StringIO(xyz_str), delimiter=" ",  header=None,
                 names=["x", "y", "z"], dtype=dtype_spec)                     # in memory fastest

#- Create the shapely 'geometry' column directly (Vectorized) and GeoDataFrameLite | home-baked gdf
df['geometry'] = df.apply(lambda row: Point(row['x'], row['y']), axis=1)
gdf = city3D.GeoDataFrameLite(df)
gdf.crs = epsg

# --- cleanup ---
gdf = gdf[gdf['z'] != jparams['nodata']]
gdf.reset_index(drop=True, inplace=True)
gdf = gdf.round(2)
#print(len(gdf))

end = time.time()
print('runtime:', str(timedelta(seconds=(end - start))))

runtime: 0:00:00.561605

Plot

Browse the saved './data/topologyFig' at your leisure

#%matplotlib

#fig, ax = plt.subplots(figsize=(11, 11))
#ts.plot(ax=ax, facecolor='none', edgecolor='purple', alpha=0.2)
#if len(new_df1) > 0:
#    new_df1.plot(ax=ax, edgecolor='red', facecolor='none')#, alpha=0.3)#, column='osm_building', legend=True)

#def plot_geometries(df, ax=None, facecolor='none', edgecolor='purple', alpha=0.5):
#    if ax is None:
#        fig, ax = plt.subplots(figsize=(10,10))

#    patches = []

#    for geom in df['geometry']:
#        if geom is None:
#            continue

#        if isinstance(geom, Polygon):
            # Exterior ring
#            patches.append(MplPolygon(list(geom.exterior.coords), closed=True))
            # Interiors (holes)
#            for interior in geom.interiors:
#                patches.append(MplPolygon(list(interior.coords), closed=True))
#        elif isinstance(geom, MultiPolygon):
#            for poly in geom.geoms:
#                patches.append(MplPolygon(list(poly.exterior.coords), closed=True))
#                for interior in poly.interiors:
#                    patches.append(MplPolygon(list(interior.coords), closed=True))

#    pc = PatchCollection(patches, facecolor=facecolor, edgecolor=edgecolor, alpha=alpha)
#    ax.add_collection(pc)
#    ax.autoscale()
#    ax.set_aspect('equal')
#    return ax

##-- Example usage:
#fig, ax = plt.subplots(figsize=(11, 11))
#plot_geometries(ts_copy, ax=ax, facecolor='none', edgecolor='purple', alpha=0.2)
#if len(new_df1) > 0:
#    plot_geometries(new_df1, ax=ax, facecolor='none', edgecolor='red', alpha=0.5)
#-- save
#plt.savefig('./data/topologyFig', dpi=300)
#plt.show()

# -- execute function. write geoJSON
dis = city3D.bldHeights(ts)

start = time.time()

dis_c = dis.copy()
dis_c.drop(dis.index[dis['building'] == 'bridge'], inplace = True)
dis_c.drop(dis.index[dis['building'] == 'roof'], inplace = True)

end = time.time()
print('runtime:', str(timedelta(seconds=(end - start))))

runtime: 0:00:00.001919

dis_c.head(2)
#dis.plot()

	osm_id	address	building	building:levels	building:use	building:flats	building:units	beds	rooms	residential	amenity	social_facility	operator	building_height	min_height	plus_code	footprint	geometry
0	6383946	Western Cape Metrorail - Infrastructure Buildi...	office	1.0	NaN	NaN	NaN	NaN	NaN	NaN	None	NaN	NaN	4.1	0.0	4FRW3FCF+946	[[(266353.277, 6242850.213), (266357.266, 6242...	POLYGON ((266353.277369 6242850.212725, 266357...
1	13328172	None	school	2.0	NaN	NaN	NaN	NaN	NaN	NaN	None	NaN	NaN	6.9	0.0	4FRW3F96+6MG	[[(265366.084, 6242509.527), (265364.518, 6242...	POLYGON ((265366.083781 6242509.526659, 265364...

#-

#- prepare xyz (more buildings = more time)
start = time.time()

# Convert bytes to DataFrame
xyz_str = xyz_bytes.decode("utf-8")  # Decode to string

dtype_spec = {
    "x": np.float32,  # Reduce precision from float64 to float32 (saves memory)
    "y": np.float32,
    "z": np.float32
}

#df = pd.read_csv(jparams['xyz'], delimiter = ' ', header=None, names=["x", "y", "z"])
df = pd.read_csv(pd.io.common.StringIO(xyz_str), delimiter=" ",  header=None,
                 names=["x", "y", "z"], dtype=dtype_spec)                     # in memory fastest

#- Create the shapely 'geometry' column directly (Vectorized) and GeoDataFrameLite | home-baked gdf
df['geometry'] = df.apply(lambda row: Point(row['x'], row['y']), axis=1)
gdf = city3D.GeoDataFrameLite(df)
gdf.crs = epsg

# --- cleanup ---
gdf = gdf[gdf['z'] != jparams['nodata']]
gdf.reset_index(drop=True, inplace=True)
gdf = gdf.round(2)
#print(len(gdf))

end = time.time()
print('runtime:', str(timedelta(seconds=(end - start))))

runtime: 0:00:00.507016

Prepare for Triangle:

The Python code to execute the city3D.functions are in the city3D.py script

#- harvest the building vertices, combine with the elevation, create regions and segments for Triangle
coords, regions, segments = city3D.prepareTri(gdf, dis_c, aoibuffer)

Triangle

A = dict(vertices=np.array(coords), segments=np.array(segments), #holes=np.array(holes),
         regions=np.array(regions))

# 'p'  = Triangulate the PSLG: Delauney triangulation with segments (building outlines) as constraints.
# 'Y' = Do NOT add Steiner points
# 'A'  = Attribute triangles with region IDs
# 'z'  = Zero-based indexing (prevents index errors)
Tr = tr.triangulate(A, 'pYAz')

#- the vertices
final_verts_2d = Tr['vertices']

#- round to 3 decimals to match your get_pt_idx rounding
z_cache = {(row.x, row.y): row.z for row in gdf.itertuples()}

## -- we triangulate in 2D and project into 3D space. the vertices of the building outlines need a 'z'-value
final_verts_3d = []
for x, y in final_verts_2d:
    x_r, y_r = x, y

    # 2. Check if we already have the Z value in our GDF points
    if (x_r, y_r) in z_cache:
        z = z_cache[(x_r, y_r)]
    else:
        # 3. Only query the raster if the point is a new vector/Steiner vertex
        z = float(city3D.rasterQuery2(x, y, gt_forward, rb))

    final_verts_3d.append([x, y, z])

final_verts_3d = np.array(final_verts_3d)

#s- eparate triangles by their Region ID for CityJSON
tris = Tr['triangles']
tri_attr = Tr['triangle_attributes'].flatten()

CityJSON

#-
minz = gdf['z'].min()
maxz = gdf['z'].max()

create CityJSON

The Python code to execute the .output_cityjson function is in the city3D.py script

# -- execute function. create CityJSON
crs = epsg[5:]

city3D.output_cityjson(extent, minz, maxz, tris, tri_attr, final_verts_3d, dis, jparams, gt_forward, rb, crs)

src_ds = None

Go over to Ninja the online CityJSON viewer and explore!

Tend = time.time()
print('runtime:', str(timedelta(seconds=(Tend - Tstart))))

runtime: 0:00:32.853490

1. Quality#

WARNING:

Lower resolution Elevation Models can leave gaps!


25m

Higher resolution Elevation Models do solve the challenge.


15m
10m

Why is this happening?

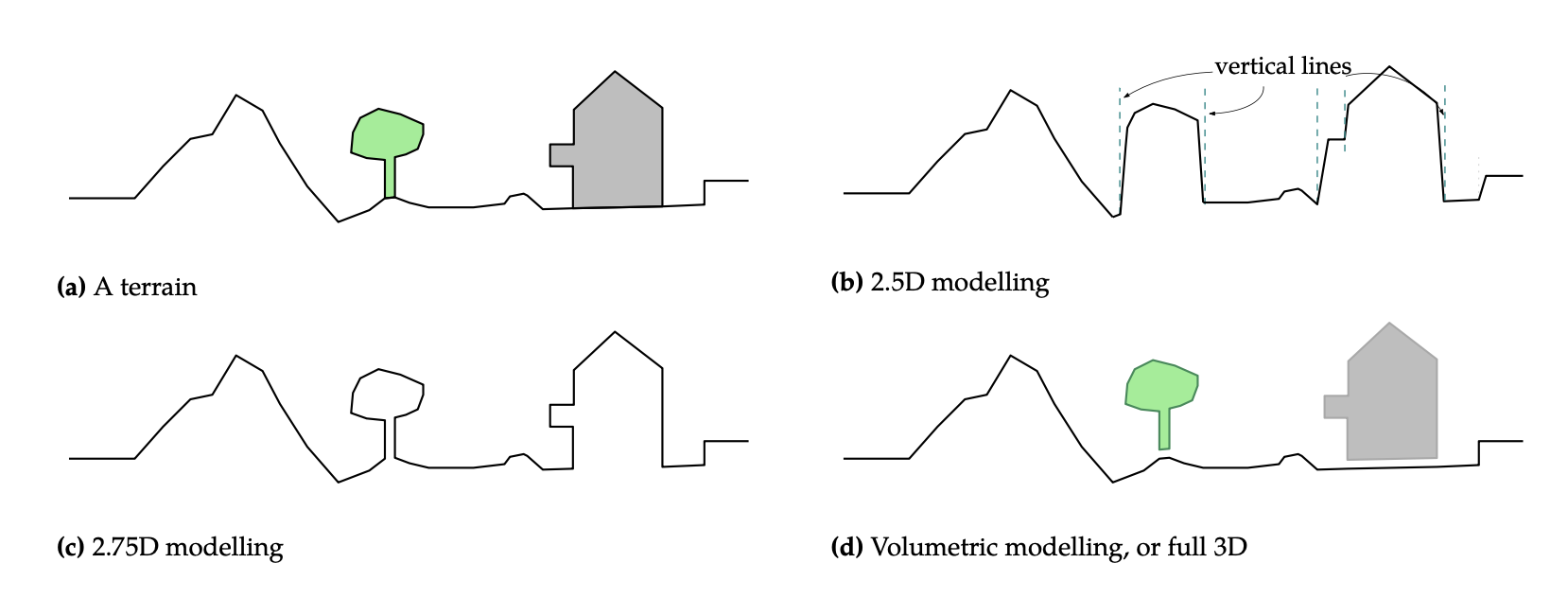

What do we (in the geospatial community) mean when we say; “3D”?

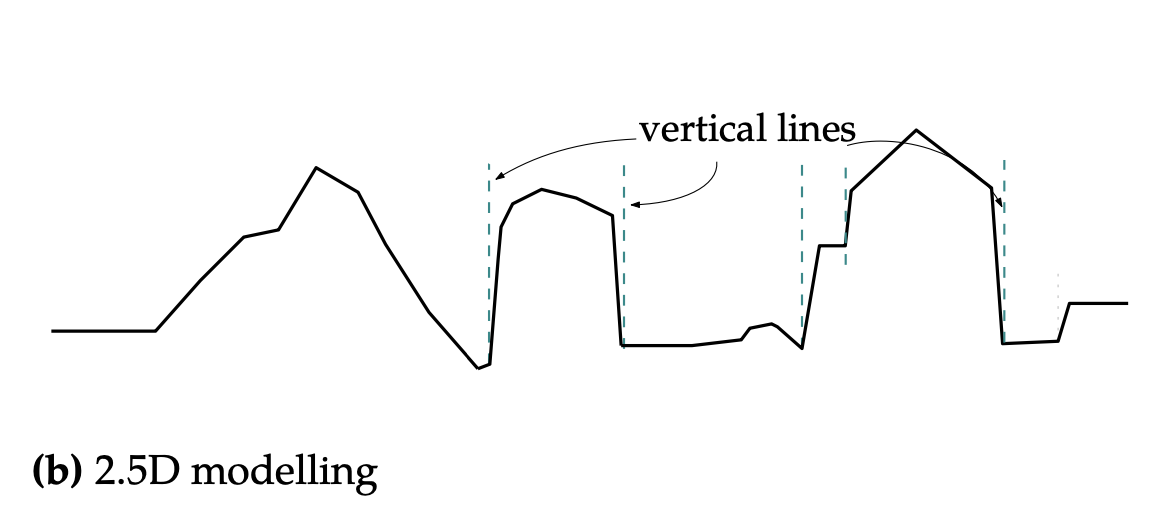

We model terrain (a raster DEM) as a 2D surface imbedded in 3D space. Each ‘xy’ coordinate (pixel) only has one ‘z’ height. This is typically called 2.5D modelling. Notice that ‘truthfully’ representing objects connected to a ground surface is impossible. A wall for example could never be straight but have to deviate from the vertical. This is why a DEM is often defined as the surface of the earth free of man-made and natural features

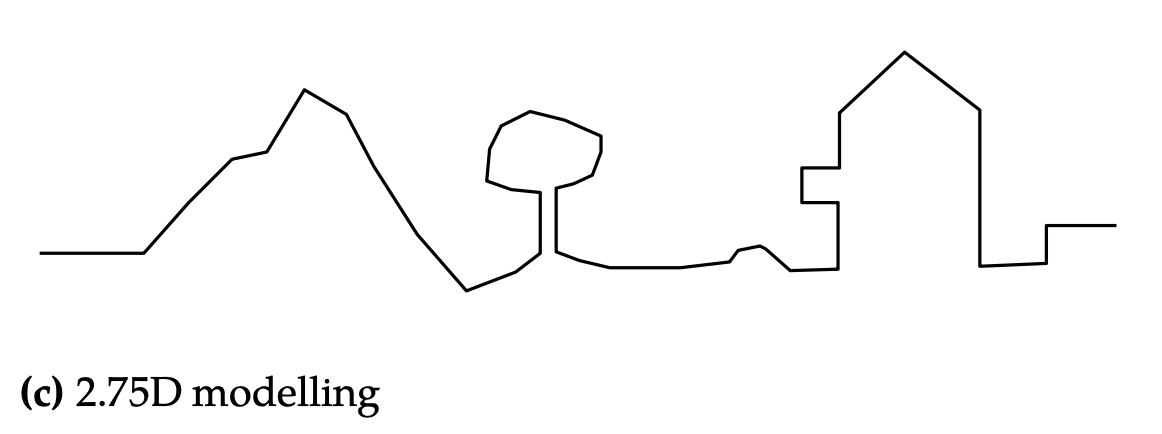

To represent a surface ‘truthfully’ we can employ 2.75D modelling. The challenge with this solution is; it models the exterior only and it is one surface where objects are one feature. A 3D mesh is a 2.75D surface and while traditionally a CAD tool its foray into GIS is recent

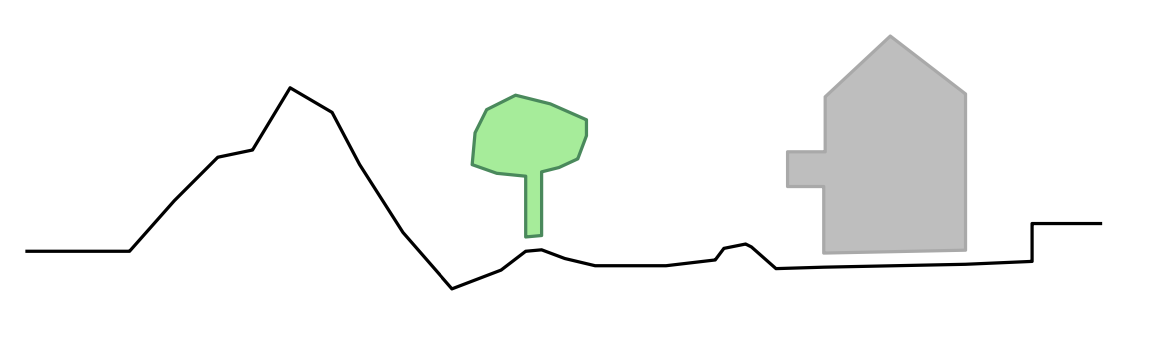

Full volumetric 3D modelling, like a 3D City Model, is actually a 2.5D surface including volumetric 3D objects. We can estimate BVPC from these models because we can calculate the volume of a structure

Why is this important?

We model terrain seperately from the objects (trees, buildings, etc) connected to it.

We remove the buildings, roads, trees, etc. —we cut them out as we did above– and due to how geo3D creates a city model (terrain modelled seperate from the buildings); the resolution of the raster DEM can create challanges.

The challenge is overcome with a finer resolution elevation model.

In this particular case a 15m DEM easily solves the challange.

LoD1 Timing and Quality Considerations

Contents

LoD1 Timing and Quality Considerations#

1. Quality#
